Product Introduction

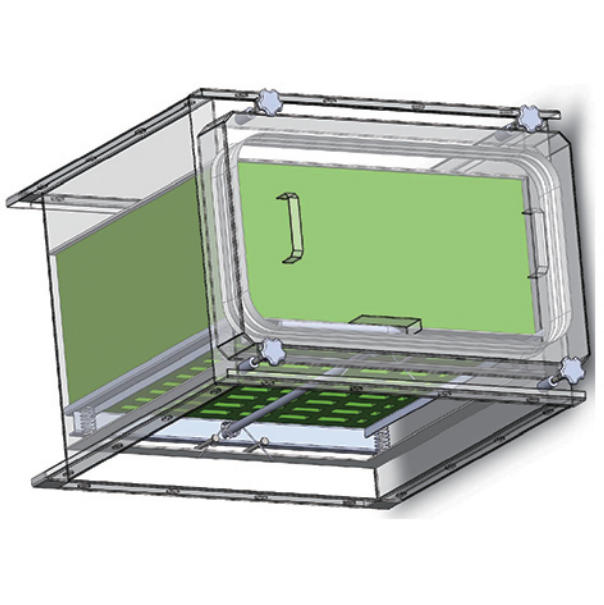

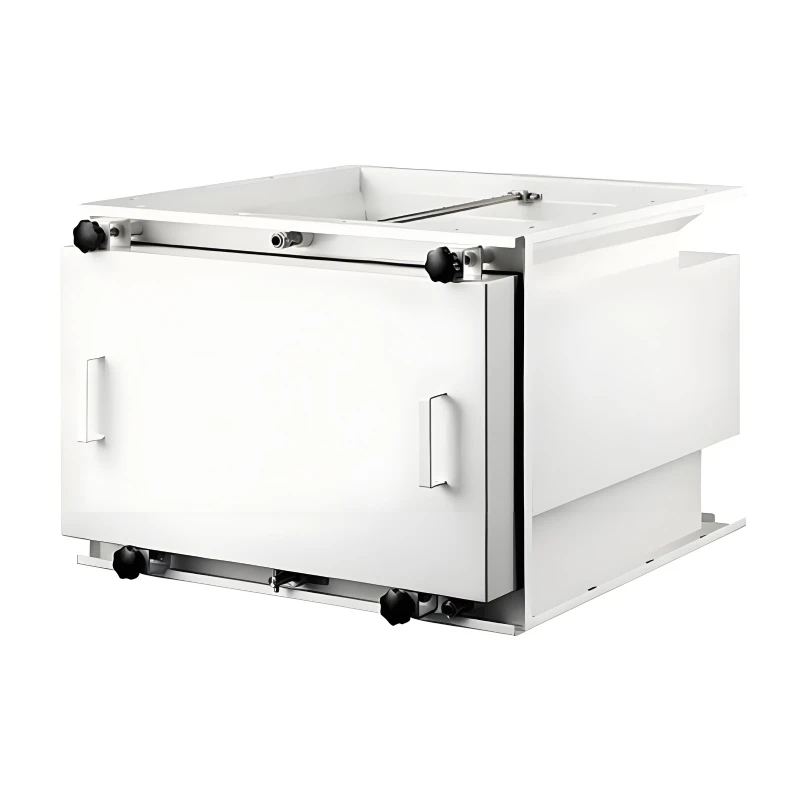

Camsafe is a high-efficiency safety exhaust filter unit installed in ductwork. It can be equipped with a safety bag for filter replacement. The main housing structure is fully welded and undergoes structural strength and airtightness testing at 5000Pa to ensure that hazardous gases in the duct do not leak. The high-flatness sealing surface inside the housing, combined with the filter gasket, achieves leak-free performance between the filter upstream and downstream. When equipped with an H14 filter, it meets the standard requirement of PAO/DEHS total efficiency not less than 99.99%. The housing is made of 304 stainless steel, with carbon steel epoxy spray coating also available.

Ciri-ciri Produk

1. Camsafe is welded firmly without deformation, ensuring overall structural strength and airtightness of the housing

2. Housing made of 3mm thick stainless steel 304 or cold-rolled steel; stainless steel surface passivated, cold-rolled steel surface epoxy spray coated in color RAL9016, ensuring the housing surface is not prone to dust accumulation and resistant to corrosion from formaldehyde and H₂O₂

3. Filter clamping device made of stainless steel 304 for quick clamping

4. Inlet/outlet square flanges, pre-drilled before delivery, flange width 50mm

5. Safety replacement bag ensures operators do not come into contact with the filter

6. Camsafe compatible filters: Camsafe-1000 filter size 610×610×292mm; Camsafe-450 filter size 305×610×292mm
